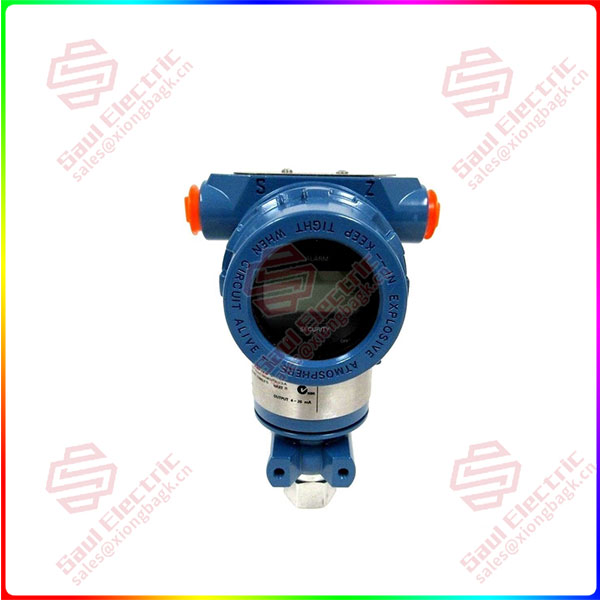

Essential details：DVC2000 30MA-30VDC-100PSI MAX Digital Valve Controller
Integral mounting to the Fisher GX Control Valve and Actuator System Sliding-stem applications Quarter-turn rotary applications
The DVC2000 digital valve controller can also be mounted on other actuators that comply with IEC 60534-6-1, IEC 60534-6-2, VDI/VDE 3845 and NAMUR mounting standards.
Input Signal
Analog Input Signal: 4-20 mA DC, nominal; split ranging available Minimum Voltage: Voltage available at instrument terminals must be 8.5 volts for analog control, 9.0 volts for HART communication Maximum Voltage: 30 volts DC Minimum Control Current: 4.0 mA (below 3.5 mA may cause microprocessor restart) Overcurrent Protection: Input circuitry limits current to prevent internal damage
Reverse Polarity Protection: No damage occurs from reversal of loop current
Output Signal
Pneumatic signal as required by the actuator, up to full supply pressure
Minimum Span: 0.5 bar (7 psig)
Maximum Span: 7 bar (101 psig)
Action: Single Acting, direct
Supply Pressure(1)
Recommended: 0.5 bar (7 psig) greater than the maximum actuator requirements
Maximum: 7 bar (101 psig)
Supply pressure medium must be clean, dry air or noncorrosive gas
Per ISA Standard 7.0.01
A maximum 40 micrometer particle size in the air system is acceptable. Further filtration down to 5 micrometer particle size is recommended. Lubricant content is not to exceed 1 ppm weight (w/w) or
volume (v/v) basis. Condensation in the air supply should be minimized
