UniOP ETOP-05 low-cost human machine interface (HMI) device

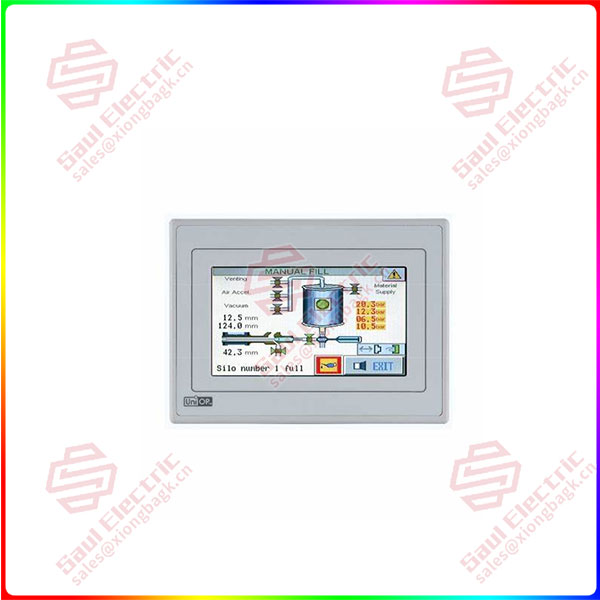

The UniOP ETOP-05 is a low-cost human machine interface (HMI) device with a touchscreen interface and a 5.6-inch monochrome graphics display. With its small size and 1/4 VGA resolution, it is ideal for situations with limited budgets and certain requirements for quality and performance. The ETOP-05P model is equipped with coated electronics to improve durability in harsh environmental conditions.

The main features of this product include:

5.7-inch monochrome display with white LED backlight using TFT technology.
Resistive touch screen with 1/4 VGA (320×240 pixels) resolution.
Supports connectivity to industrial bus systems and Ethernet (optional plug-in modules required).

Add to quote
Categories: ,

Description

Overview

Essential details：UniOP ETOP-05 low-cost human machine interface (HMI) device

Product Description

The UniOP ETOP-05 is a low-cost human machine interface (HMI) device with a touchscreen interface and a 5.6-inch monochrome graphics display. With its small size and 1/4 VGA resolution, it is ideal for situations with limited budgets and certain requirements for quality and performance. The ETOP-05P model is equipped with coated electronics to improve durability in harsh environmental conditions.

The main features of this product include:

5.7-inch monochrome display with white LED backlight using TFT technology.
Resistive touch screen with 1/4 VGA (320×240 pixels) resolution.
Supports connectivity to industrial bus systems and Ethernet (optional plug-in modules required).
32MB of user memory.
Supports intuitive programming using UniOP Designer 6 software.
Supports communication drivers for more than 130 industrial devices.
Optional modules are used for fieldbus systems (such as Profibus DP, CANopen, DeviceNet, Interbus) and Ethernet.

ETOP04C-0046

Product parameter

Dual driver communication function, capable of displaying dynamic data in digital, text, bar chart and graphic image formats.
Data collection and trend display. The trend data can be transmitted to the host over an Ethernet connection.
Analog instrument objects and recipe data are stored, and recipe data can also be transferred to the host via Ethernet.
Multilingual applications are supported and all text information in the application can be exported in Unicode format for easy translation.
Powerful macro editor for configuring touch screen operations.
List of alerts and historical alerts, related information can be printed or transmitted to the host via Ethernet.
Eight level password protection.
Support for printing reports to serial printers, high freedom of report configuration.
Ethernet-based UniNet network that shares data between UniOP Hmis and provides data using UniNet OPC Server.

APPLICATION

The ETOP-05 is designed for installations that meet industrial environmental regulations, including emission interference and noise resistance. In addition, it has IP65 front panel protection, ensuring durability in harsh environments. The technical data also includes detailed information on the display type, resolution, active display area, contrast adjustment, etc. Supply voltage is 24V DC, maximum current consumption is 0.6A, with automatic fuse protection.
